Vertical pipeline pump OH3

Description：

This series of pumps is a single-stage single suction radial split vertical pipeline centrifugal pump, designed and manufactured in accordance with the AP1610 standard requirements. The pump structure conforms to the AP1610OH3 pump type; The OH3 vertical pipeline pump is a single-stage cantilever pump with an independent bearing frame; The axial force of this series of pumps is balanced through the front and rear wear-resistant rings and balance holes of the impeller, and the residual axial force is borne by the thrust bearing of the bearing box. The bearing is lubricated with grease, and the motor is installed on a bracket integrated with the pump; The pump is connected to the drive machine with an extended coupling.
The rotation direction of this series of pumps is clockwise when viewed from the motor end downwards. The centerline of the discharge and suction ports of the OH3 series pumps are on the same horizontal line, which occupies a small area and is easy to install.

Get a Quote for Industrial Pumps Today

Send us your requirements (flow rate, head, medium, temperature), and our engineers will provide a professional solution within 12 hours.

Get Instant Quote
Click to open WhatsApp Web or scan the QR code.

Contact our engineers directly via WhatsApp

Performance

Flow rate:~2600m³/h
Lift:~300m
Design pressure: 5.0MPa
Working temperature: -40℃ ~ 250℃

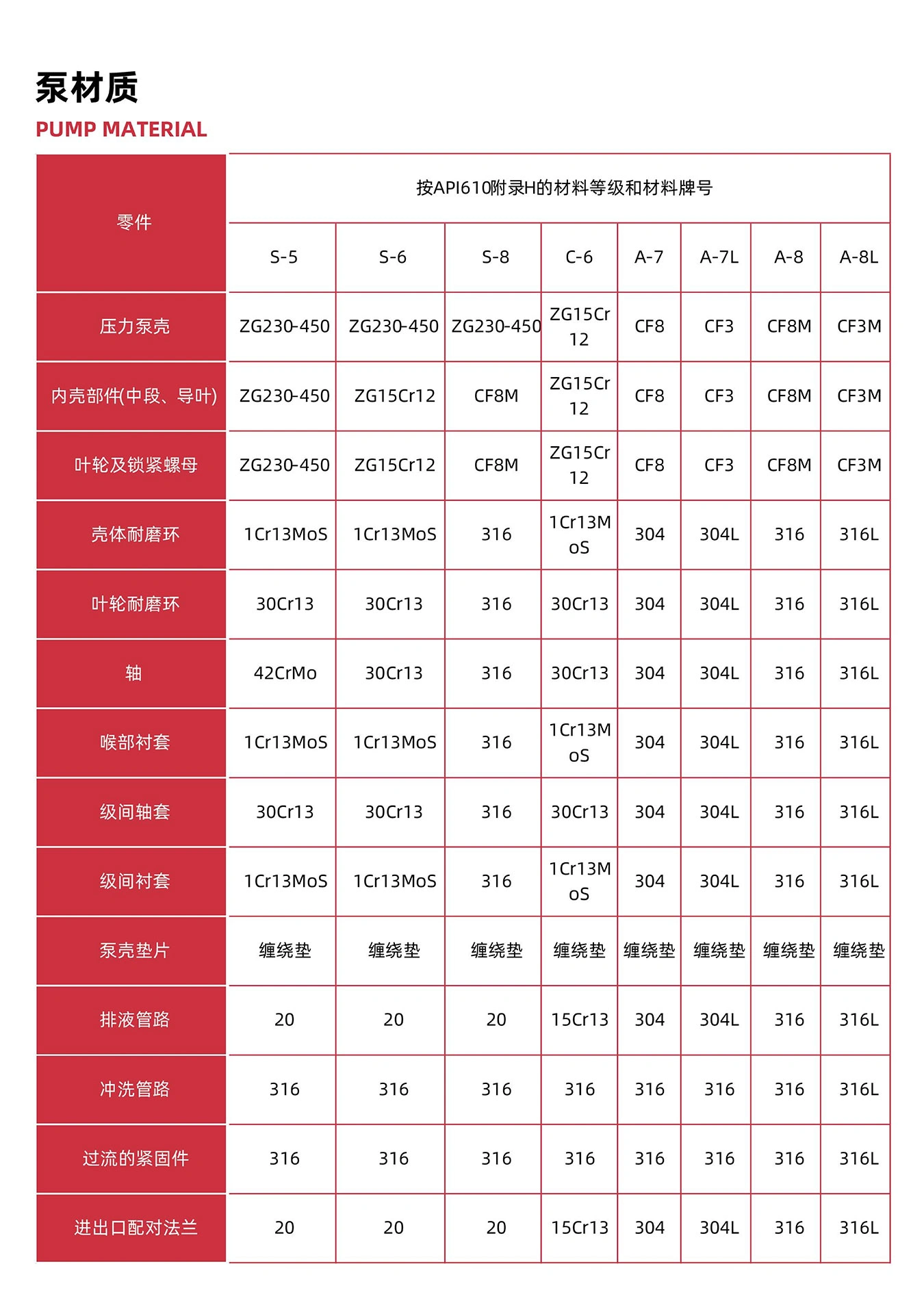

Materials used

Scope of Application

Refinery/Petrochemical Plant/General Industrial Process Coal chemical and low-temperature engineering/water supply and treatment Desalination of seawater/pipeline pressurization

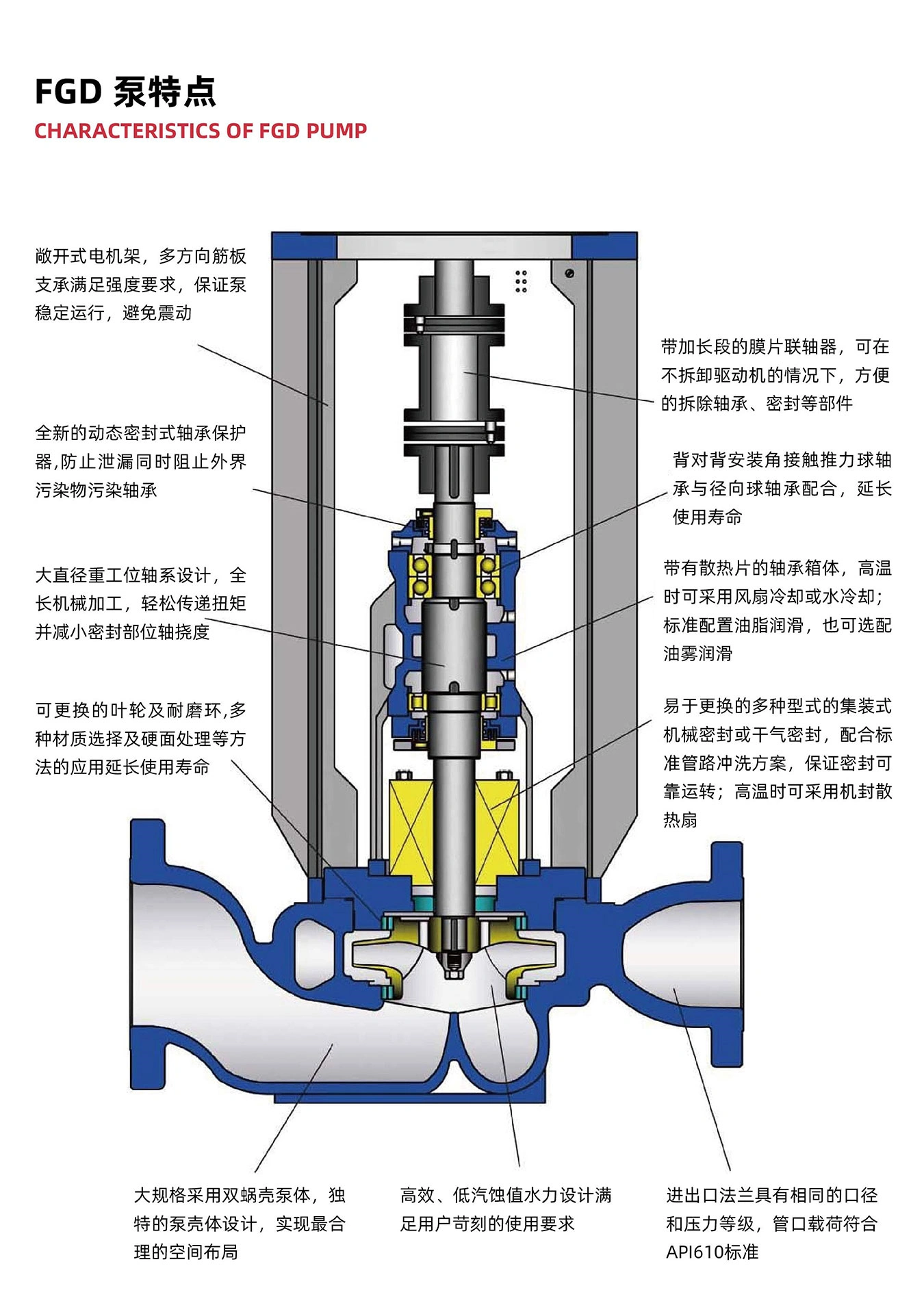

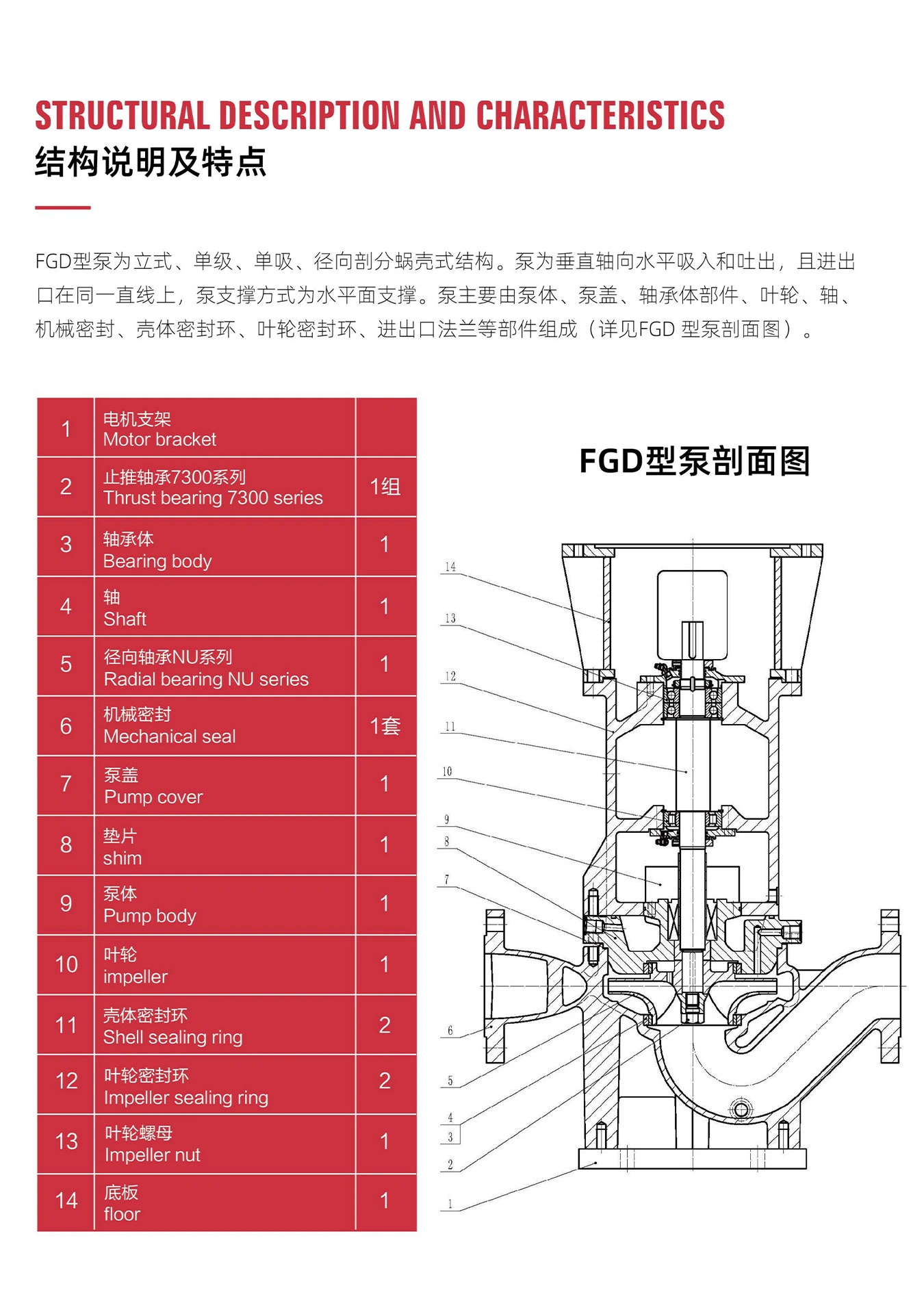

Structure

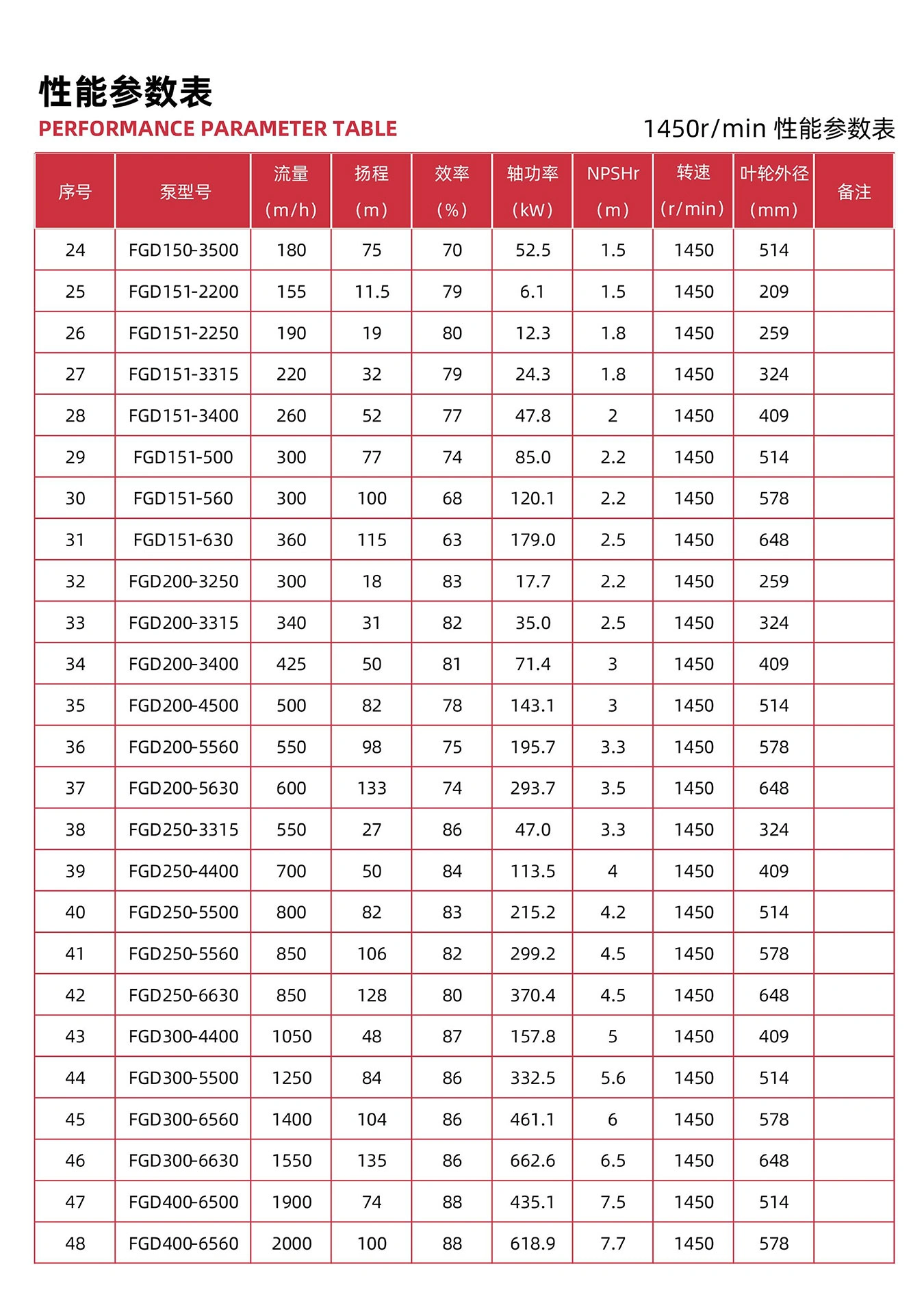

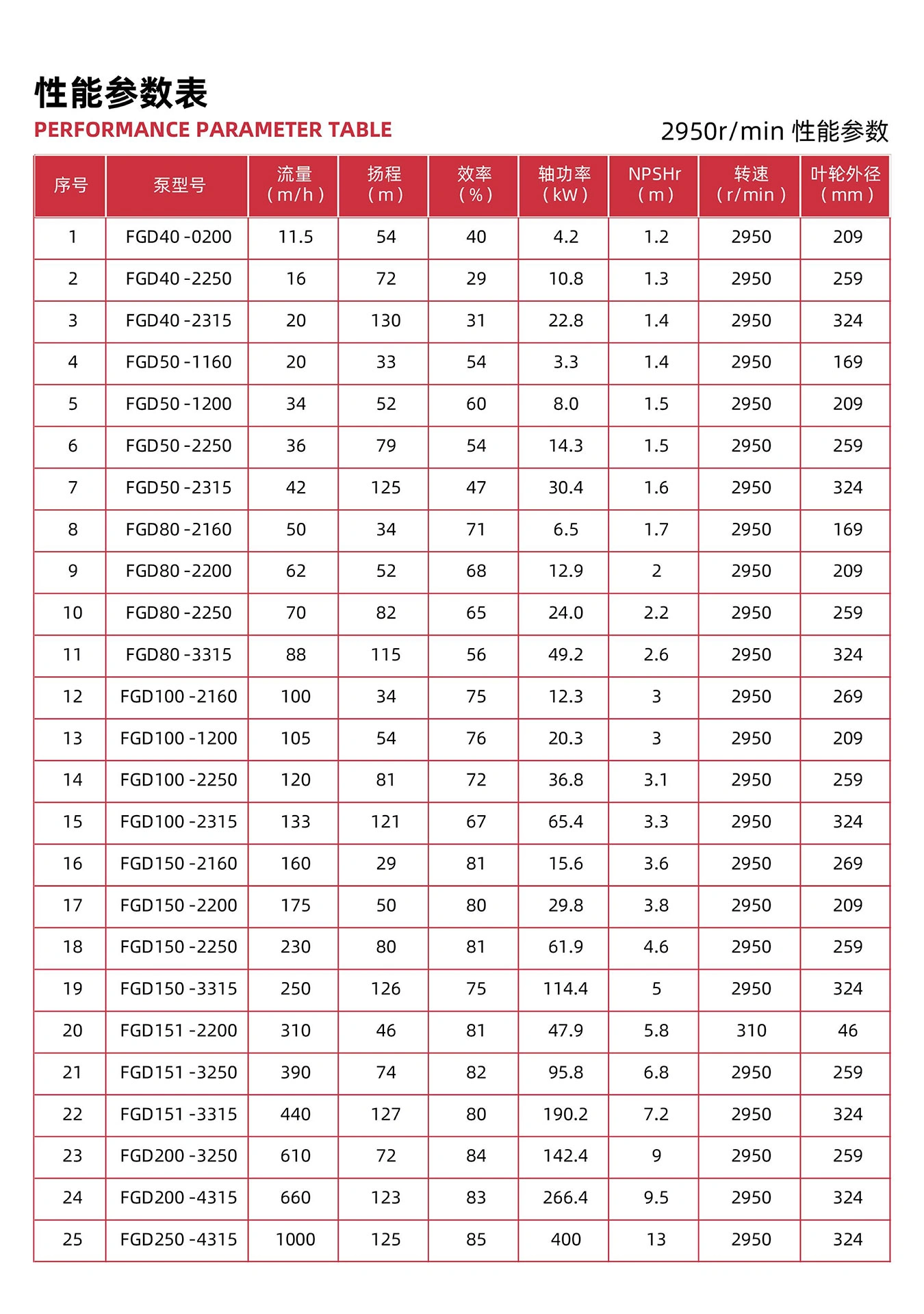

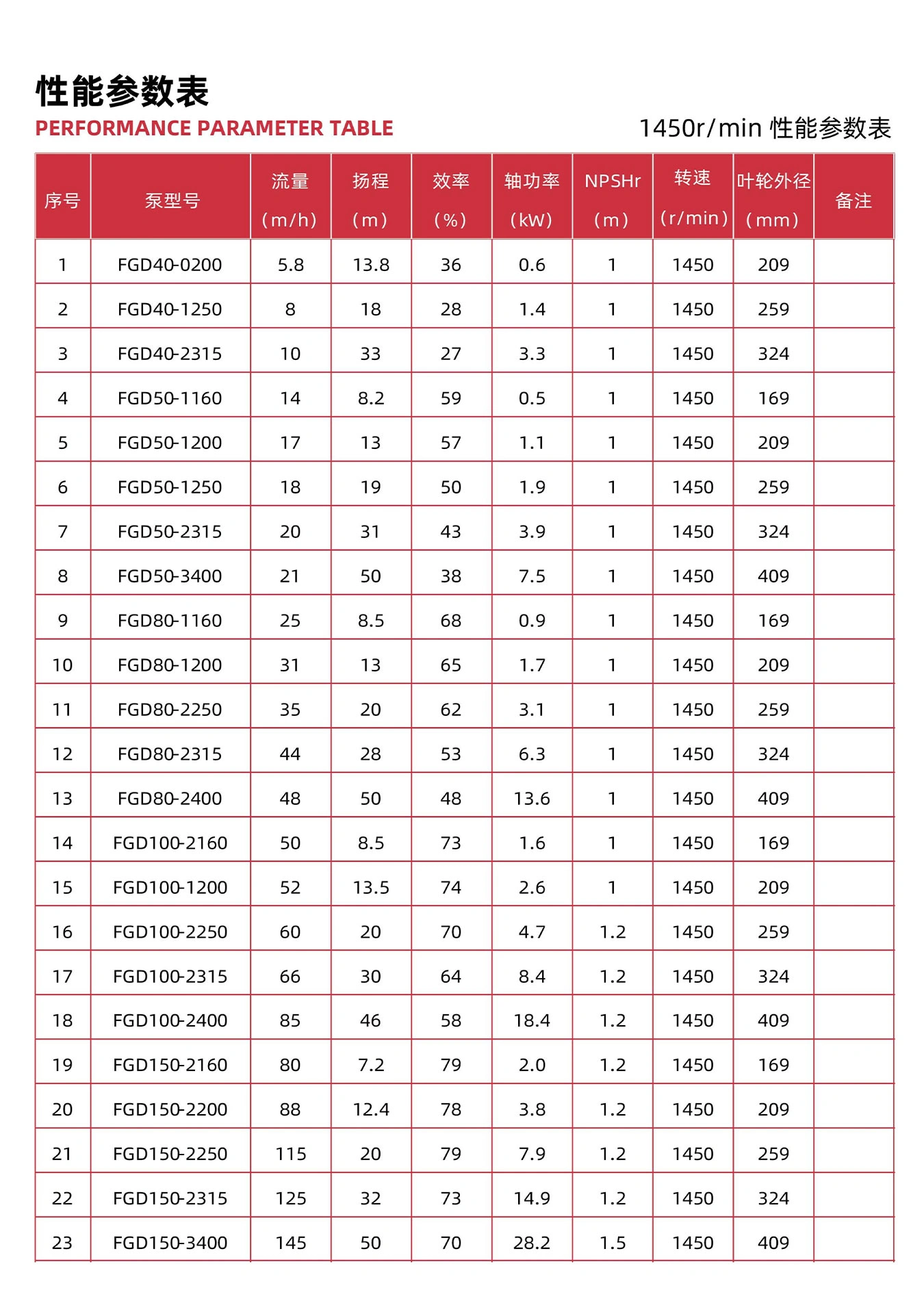

Performance parameters
