Swirl gas-liquid mixed flow pump

Description：

Hydraulic design: Adopting a vortex hydraulic system specifically designed for conveying high solid content and long fibers, the impeller is hidden at the rear to form a wide and smooth flow chamber, ensuring unobstructed conveying; The wear of hydraulic components has a relatively small impact on performance.
Non destructive conveying: Most solids are directly discharged to the pump port without passing through the impeller flow channel under the centrifugal force of the vortex formed by the impeller rotation. The damage to the conveyed solids is minimal, and the wear on the flow surface of the impeller and pump body is also reduced, resulting in a longer service life.
Bearing box: designed according to API610 standard, using thin oil lubrication, and matched with impeller, using secondary blades to balance axial force, ensuring overall structural stiffness and main shaft stiffness and strength, achieving high reliability requirements.
Shaft seal configuration: It adopts a containerized mechanical seal and corresponding seal flushing system according to the API682 standard size. The standard adopts the plan32 flushing scheme. The gap formed by the throat liner inside the sealing chamber prevents solids from entering the sealing chamber and reduces the consumption of sealing flushing water. It has good reliability and easy maintenance.

Get a Quote for Industrial Pumps Today

Send us your requirements (flow rate, head, medium, temperature), and our engineers will provide a professional solution within 12 hours.

Get Instant Quote
Click to open WhatsApp Web or scan the QR code.

Contact our engineers directly via WhatsApp

Performance

Flow rate: ≤ 800m³h
Head: ≤ 80m
Pressure rating: ≤ 10MPa
Working temperature: ≤ 180 ℃

Materials used

2205, 2507 CD4MCu、 Dual phase steel, stainless steel, high casein alloy Cr30A、 20 # alloy TA1,/TA2/TC4， Hastelloy alloy, etc

Scope of Application

The slurry vortex pump adopts a vortex design, and the impeller adopts a hidden structure. The flow channel inside the pump is unobstructed, which can transport solid-liquid two-phase mixed fluids containing large particles, long fibers, slurry, waste and other solids without blockage. It is also suitable for transporting solid-liquid gas three-phase mixed fluids with a certain gas content. Widely used in industries such as synthetic rubber, polymerization, pulp and paper, metallurgy, and wastewater treatment.

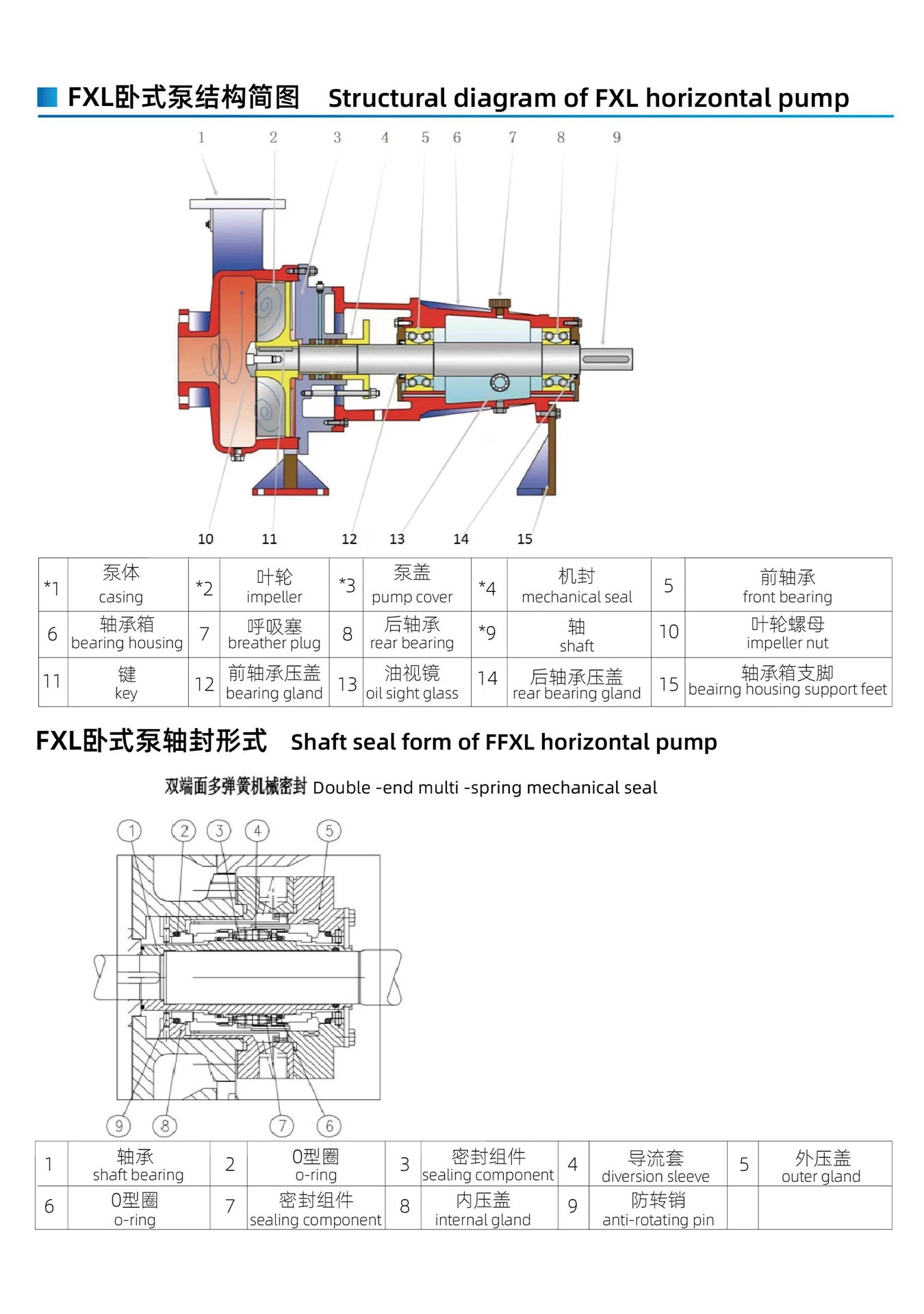

Structure

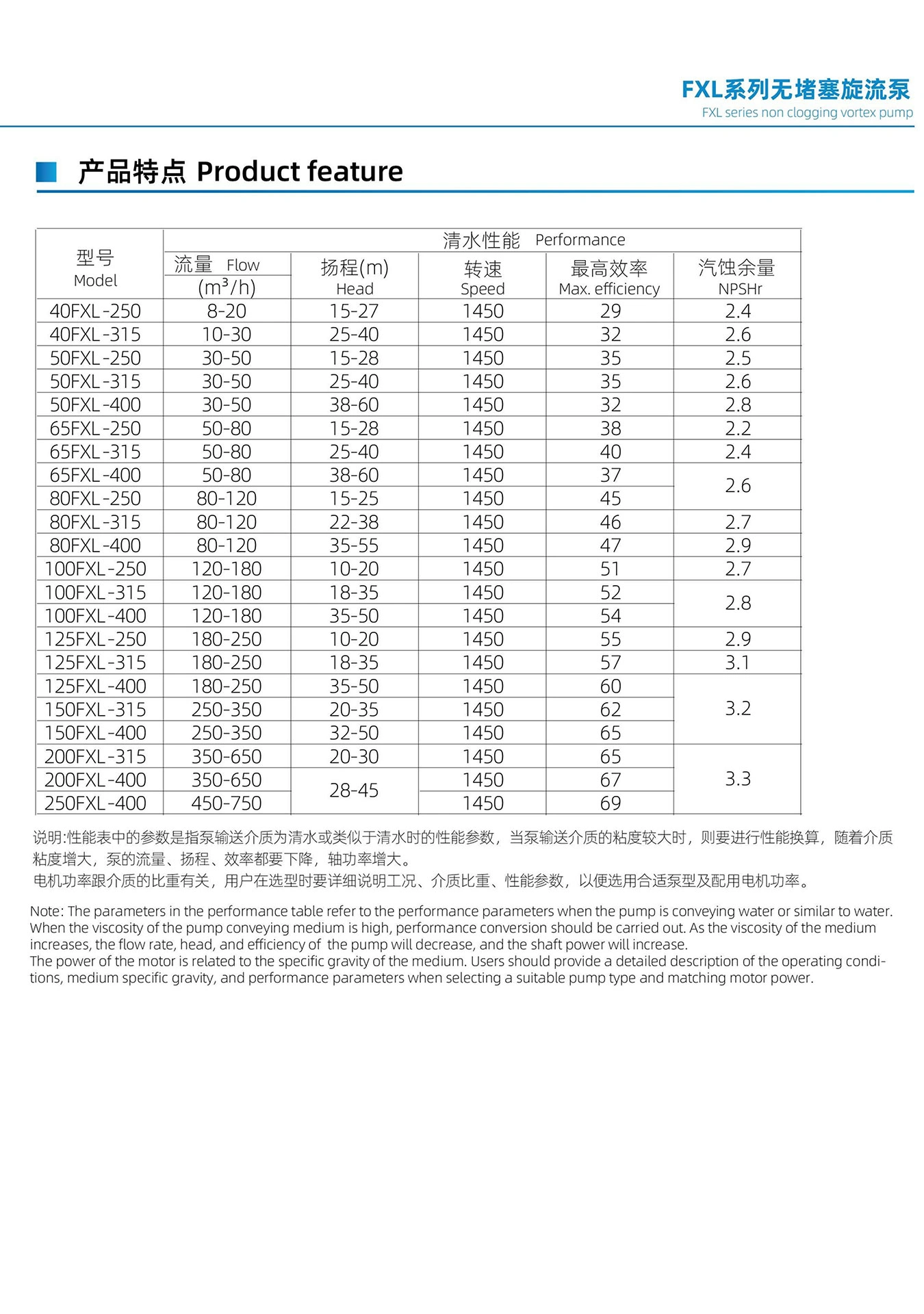

Performance parameters
